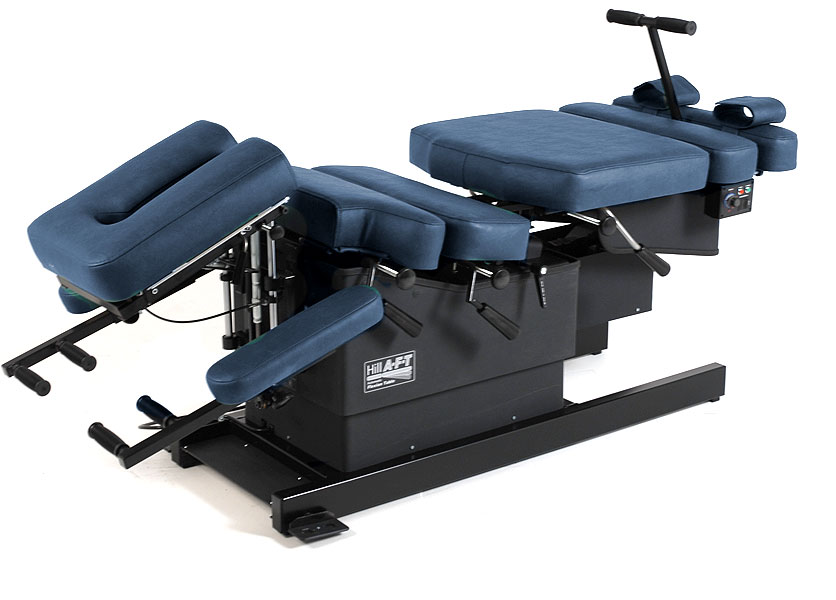

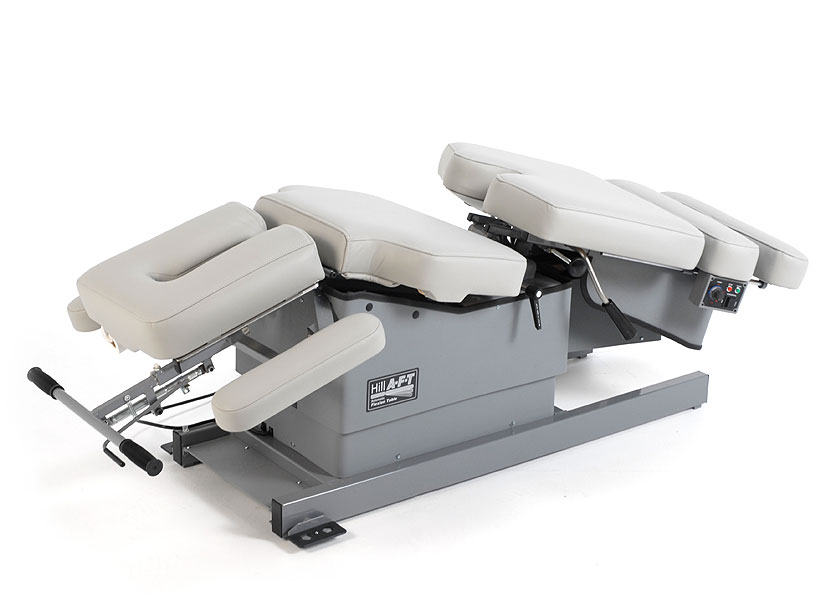

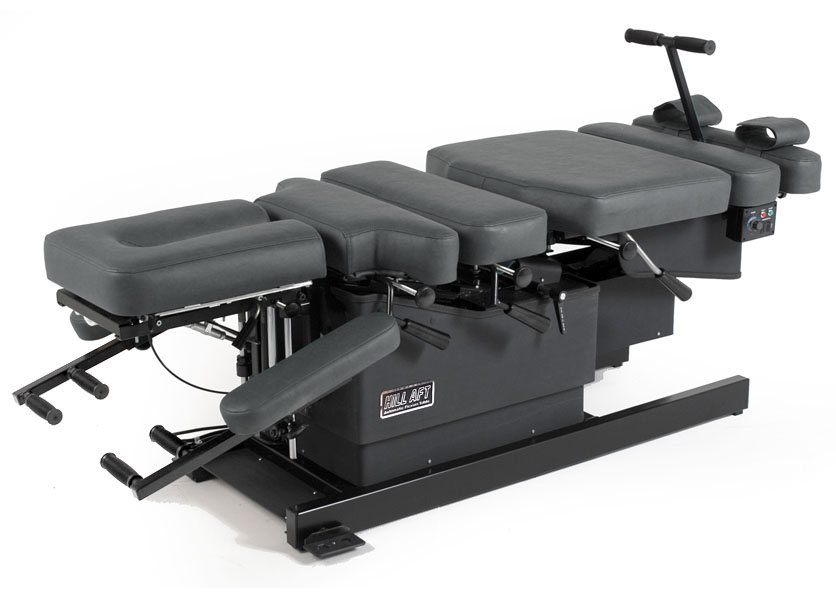

Hill AFT Automatic Flexion Table with optional Manual Drops

The Hill Automatic Flexion Table is perfect for doctors who want full-featured automatic flexion without the need for manual flexion (for manual, see Hill Air-Flex). The AFT is surprisingly affordable for a table that features variable speed flexion, electric adjustable height and an impressive list of other standard features. Make the AFT even more versatile by adding up to four manual drops including cervical drop, thoracic drop, lumbar drop and pelvic drop. Scan the options below and click to build the ideal AFT for you in the Notebook section to the right.

AFT Automatic Flexion Table

  • Starting at 6750.00 € Excl TAX

Color of the table base and the upholstery to be defined

  • Sliding Axial Motion Headpiece (For facial comfort, slides with the motion of Lumbar Flexion - See short video)
  • Variable speed motorized flexion
  • Removable tiller bar at foot-end
  • Tilting Headpiece, 30° negative and positive tilt
  • Thoracic release and lock
  • Pelvic section has lateral flexion and can be locked at any angle up to 21°
  • Slide-out ankle support with ankle harnesses
  • Adjustable patient gripper bar
  • Patient Shut-Off Switch
  • Height electrically controlled with dual rocker foot pedals
  • Width 24" / Height range from 21 1/2" to 29" (22 1/2" to 30" upon request)
  • Table top length - 5'5" (extends to 6'2"), with cervical drop - 5'5" - 6'4"
  • Medium density foam (soft or firm on request)
  • Choice of 20 vinyl colors for the top
  • Beige, gray or black acrylic thermo-plastic base
  • One-year warranty on all parts (repair in return workshop)

certificationscertifications *Would you prefer an Air-Drop AFT instead? Click Here

set up your tableRecommended Options

Click and open the sections below and choose the options you need

choose your options

Section Headpiece

  • F14 Cervical Dual Manual Drop

    459.00 +

    Double cervical manual drop of the headrest forward and downward movement.

  • F15 Raised Headpiece Recommended

    370.00 +

    The Headrest mounts up to 12.7 cm above the surface of the table

  • F22 Flexion Headpiece

    495.00 +

    A manual pneumatic flexion headpiece that can be combined with either a manual or air dual drop.

  • 92D Toggle Height Switch

    100.00 +

    The Toggle Height Switch is usually added in addition to the height foot pedal to control the height by hand (though it can be added to control other functions). It mounts under any cushion. Like a foot pedal, it activates when pressed, has "up" on one side, "down" on the other, and neutral in the middle.

  • F21 CBP Headpiece

    485.00 +

    Used for physical Bio Chiropractic including translational and lateral flexion functions. Requires the purchase of option # F15.  Not available with F22

Section Main

  • 82 Lumbar Drop

    465.00 +

    Equipped with an easy-lift cocking handle and crisp drop. Common to order with a thoracic drop.

  • 85 Thoracic Drop

    465.00 +

    Equipped with an easy-lift cocking handle and crisp drop.

  • 82-85 Manual DROP(Thoracic-Lumbar)

    930.00 +


  • 86 Pelvic Drop

    465.00 +

    Equipped with an easy-lifting cocking handle and crisp drop.

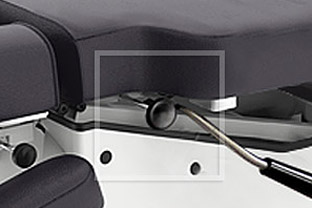

  • 85-16-2 Dual Tension Knobs Thoracic Drop

    145.00 +

    Save steps during treatment by adding a second drop tension knob on the opposite side of the table.

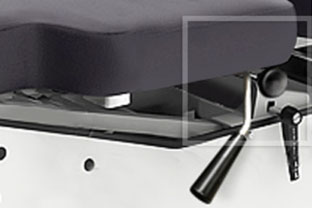

  • 82-16-2 Dual Tension Knobs Lumbar drop

    145.00 +

    Save steps during treatment by adding a second drop tension knob on the opposite side of the table.

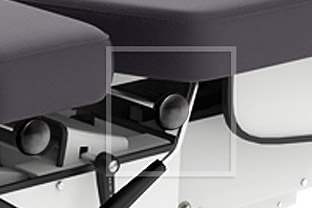

  • 86-2 Dual Tension Knobs Pelvic Drop

    145.00 +

    Save steps during treatment by adding a second drop tension knob on the opposite side of the table.

  • 154 Scoliosis Correction Package

    690.00 +

    Equip your AFT with the Scoliosis Package and give your patients correct alignment while in the automatic flexion mode. Easily attach the side frames on both sides of the table and use the three belts to correct Scoliosis curvatures.

Section Cushions

  • 97- 27 inch width (68.5CM)*

    130.00 +

    27 inch wide cushions (standard is 24 inches),(not recommended for doctors under 6 feet tall or with limited reach) * Transport costs import in addition of 300 € excl tax

  • 80 Removable width extensions

    264.00 +

    8 cm x 53cm. Adds 15cm to the width of the table. Used for massage therapy.

  • 86C Male Notch in Pelvic Drop

    55.00 +

    Cutting the pelvic cushion for more comfort for men

  • 87A Slide-Out Ankle Support Recommended

    195.00 +

    Adjusts up to 8" in height and extends to 12" from the end of the table. (Cannot be combined with the drop-away foot option 87)

  • 140 Finesse Tricot Material Recommended

    305.00 +

    Foam-backed, puncture-resistant with the look and feel of fine leather. Please see color chart for details.

section foot & hand controls

  • 92B Auto-Touch Foot Pedal

    206.00 +

    This feature changes the standard "press-and-hold" function of your HEIGHT foot pedal to a "tap-and-release" function instead. For example: With table at the lowest height, tap-and-release the "UP" arrow to start the upward height motion. The table will continue to rise until the pedal is tapped a second time. Can be applied to a corded OR a Rocker Foot Pedal.

  • 92-HH Extra Foot Pedal for Height-control at the Head-end

    135.00 +

    Additional foot pedal added to the head-end of the table to control the table height.

  • 92-HF Extra Foot Pedal for Height-control at the Foot-end

    135.00 +

    Additional foot pedal added to the foot-end of the table to control the table height.

base

  • 141 Timer 30 minutesRecommended

    96.00 +

    Added timer option to automatic bending which allows you to control the treatment time for each patient, fixed on the table under the foot cushion.

  • 93 Caster System for mobility Recommended

    340.00 +

    Makes moving the table easy. Engaged with a foot lever on both ends of the table. Not an option with adjustable feet.

  • AFT-DM 220 Volt CE

    320.00 +

    220 volt power supply for the electrical circuit intended for use outside the United States

Section AFT DROP MANUAL Maintenance and Accessories

  • 136 Hill Upholstery Cleaner

    58.00 +


    Hill Laboratories Leather and Vinyl Cleaner conditions and cleans, keeping your table looking like new. 4 - 22oz spray bottles/case.

  • H7144 Disinfectant Spray

    62.00 +


    Protex® is a one-step cleaner/disinfectant, effective against a broad spectrum of pathogens, including MRSA, HIV, Staph and COVID-19.

  • 48 Single Seat Belt

    75.00 +


    Adds a strong, click-to-lock seatbelt, for securing the patient around the waist during treatment.

  • 85TB 16x20 (51x41 cm) Thoracic Board

    118.00 +

    The thoracic board is used to lay over the thoracic section and create a firm surface for manipulation. Board dimensions are 20" x16" (51x41 cm) and upholstered to match your table.
    Thoracic board

  • 150 Gas-powered Stool

    195.00 +

    Exam Stool
    Hill Exam Stools can be upholstered in a variety of colors to match your Hill Treatment table and office decor. Our stools features a professional standard design and pneumatic (gas-powered) adjustable height controlled by a lever.
    More details

  • 151 Gas-powered Stool with back

    265.00 +

    Exam Stool Hill Exam Stools can be upholstered in a variety of colors to match your Hill Treatment table and office decor. Our stools features a professional standard design and pneumatic (gas-powered) adjustable height controlled by a lever.
    More details

the checked boxes will be added to your computer on the left side of the screen. You can print your estimate or send it to us by email to make your request faster.

AFT vs. Air-Flex
Click to Compare

Hill AFT Automatic Flexion Table

SLIDING AXIAL MOTION HEADPIECE
"NOW INCLUDED ON STANDARD MODEL"

simulate your quote

AFT Automatic Flexion Table 6750.00 € Excl TAX

Options (Add items on the right)

* Prices shown are international shipping, import duties and customs duties included
*Prices are excluding VAT 20% effective in addition.
*The simulated price shown does not include delivery to your office.
*The indicated prices are subject to the fluctuation of the Dollar and the Euro, you must ask a confirmation of estimate and it must be sent to you.
*Order taking is subject to the terms and conditions of sale
* The additional costs linked to import costs and / or the additional costs linked to air transport will be directly attributable to the price of the goods.



Send your request, we confirm your quote delivery costs included in your office
