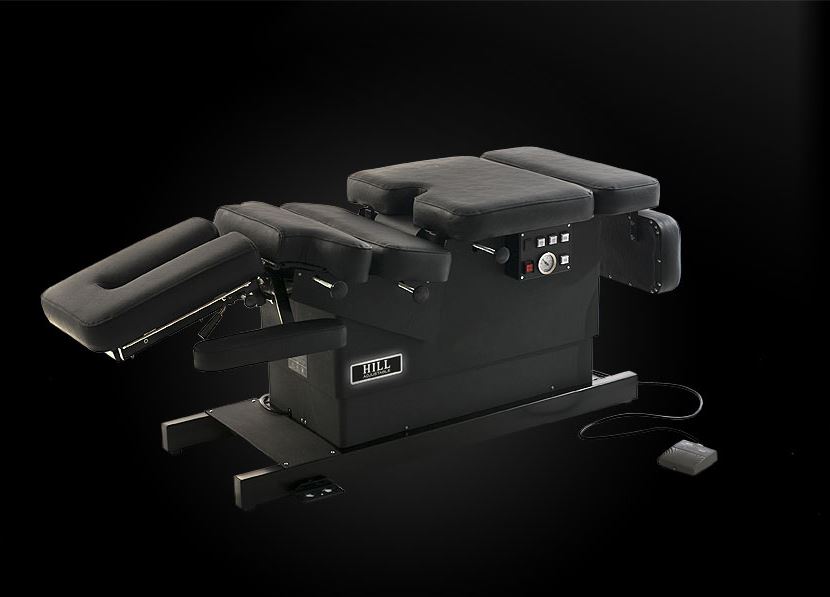

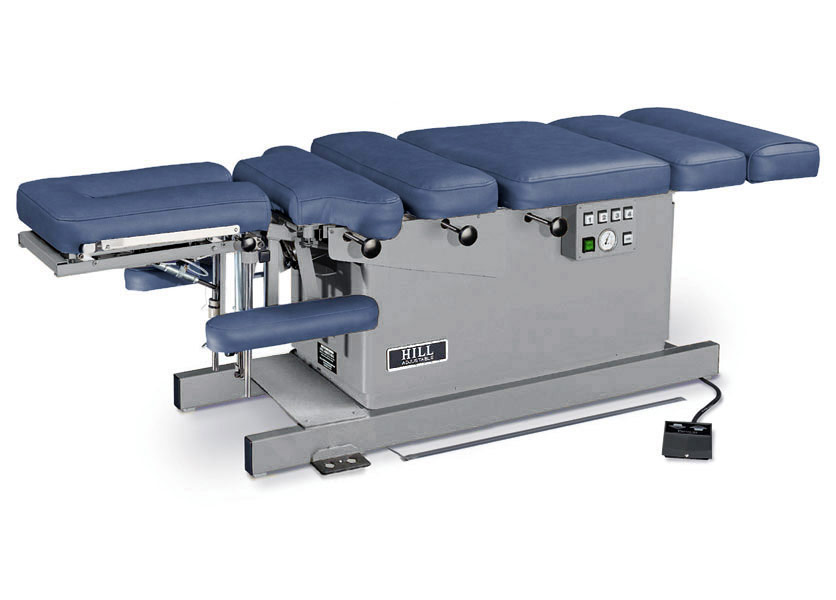

Hill Air-Drop HA90C Chiropractic Table
If you have used a manual drop table for any length of time, then you’ll appreciate the impressive speed and ease of treating with the Air-Drop HA90C. Equipped with the Hill Air-Drop System, the HA90C allows doctors to select one or up to four drops simultaneously from the convenient, side-mounted, control panel. Once a section has been dropped, it is instantly reset with the simple touch of a foot pedal.
Like all Hill Adjustables, the Air-Drop HA90C has electric adjustable-height. Height is adjusted with a rocker foot pedal that is mounted to the base and can be accessed from either side of the table. An operating range from 60 to 84 cm or 55 to 79 cm allows the doctor to work at a comfortable treatment level.
HA90C-AIR-DROP
- Starting at 7310.00 € Excl TAX
- Height controlled by Rocker Foot Pedal
- Height Range from 55 à 80 cm
(Higher starting heights also available) - Width 60 cm, Length 190 cm
- Armrests, Face cut-out 33 cm,Paper Roll, Cutter
- Tilting Headpiece, 30° Positive and Negative Tilt
- Air-Powered Thoracic Spring Breakaway
- Air Cervical Dual Drop Headpiece
(Straight Down and Forward Motion) - 3 Drops : Air Thoracic Drop, Air Lumbar Drop , Air Pelvic Drop
- Power Foot-Strips (trigger drops)
- Drop-Away Foot Section
- Choice of 20 vinyl colors for the top
- Beige, Grey or Black base with acrylic thermo-plastic cover
- One-year warranty on all parts (repair in return workshop)
set up your table
Click and open the sections below and choose the options you need
Section Headpiece
-
F14S Manual Cervical Drop Substitute
-150.00 + -
F15 Raised Headpiece
370.00 +
The Headrest mounts up to 12.7 cm above the surface of the table
-
F22 Flexion Headpiece
495.00 +A manual pneumatic flexion headpiece that can be combined with either a manual or air dual drop.
-
92D Toggle Height Switch
100.00 +The Toggle Height Switch is usually added in addition to the height foot pedal to control the height by hand (though it can be added to control other functions). It mounts under any cushion. Like a foot pedal, it activates when pressed, has "up" on one side, "down" on the other, and neutral in the middle.
-
F21 CBP Headpiece
485.00 +Used for physical Bio Chiropractic including translational and lateral flexion functions. Requires the purchase of option # F15. Not available with F22
Section Cushions
-
86 Pelvic Drop
465.00 +Equipped with an easy-lifting cocking handle and crisp drop.
-

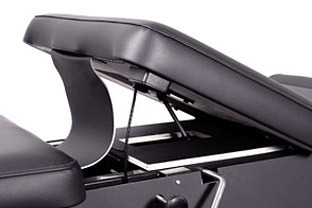

AD303 Raised Pelvic Section
258.00 +Sube y bloquea hasta 13 cm.
-
AD87A Slide-Out & Raised Ankle
205.00 +Adjusts up to 8" in height and extends to 12" from the end of the table.
(Substitute for the included drop-away foot option)
-
80 Removable width extensions
264.00 +8 cm x 53cm. Adds 15cm to the width of the table. Used for massage therapy.
-
97- 27 inch width (68.5CM)*
130.00 +27 inch wide cushions (standard is 24 inches),(not recommended for doctors under 6 feet tall or with limited reach) * Transport costs import in addition of 300 € excl tax
-
140 Finesse Tricot Material
305.00 +Foam-backed, puncture-resistant with the look and feel of fine leather. Please see color chart for details.
section Foot & hand controls
-
92B Auto-Touch Foot Pedal
206.00 +This feature changes the standard "press-and-hold" function of your HEIGHT foot pedal to a "tap-and-release" function instead. For example: With table at the lowest height, tap-and-release the "UP" arrow to start the upward height motion. The table will continue to rise until the pedal is tapped a second time. Can be applied to a corded OR a Rocker Foot Pedal.
-
92-AH Extra Foot Pedal for Air-control at the Head-end
120.00 +Additional foot pedal added to the head-end of the table to control the air pressure.
-
92-AF Extra Foot Pedal for Air-control at the Foot-end
135.00 +Additional foot pedal added to the foot-end of the table to control the air pressure.
section base
-
93 Caster System for mobility
340.00 +Makes moving the table easy. Engaged with a foot lever on both ends of the table. Not an option with adjustable feet.
-

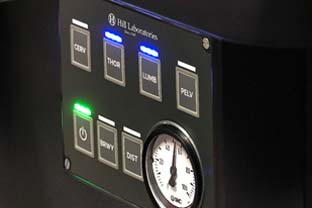

AD305 Extra Control Box
352.00 +Additional control box mounted on the other side of the table.
-
AIRHA90C 220 Volt CE
297.00 +220-volt power supply for the electrical circuit intended for use outside the United States
-
129.00 +APC-852137 Power Regulator * Electric voltage regulator, protects the electronics of the table in the event of electric overvoltages.
Section Maintenance and accessories AIRHA90C
-
48 Single Seat Belt
75.00 +
Adds a strong, click-to-lock seatbelt, for securing the patient around the waist during treatment.
-
85TB 16x20 (51x41 cm) Thoracic Board
98.00 +The thoracic board is used to lay over the thoracic section and create a firm surface for manipulation. Board dimensions are 20" x16" (51x41 cm) and upholstered to match your table.
-
150 Gas-powered Stool
195.00 +
Hill Exam Stools can be upholstered in a variety of colors to match your Hill Treatment table and office decor. Our stools features a professional standard design and pneumatic (gas-powered) adjustable height controlled by a lever.
More details -
151 Gas-powered Stool with back
265.00 +
Hill Exam Stools can be upholstered in a variety of colors to match your Hill Treatment table and office decor. Our stools features a professional standard design and pneumatic (gas-powered) adjustable height controlled by a lever.
More details -
136 Hill Upholstery Cleaner
57.00 +
Hill Laboratories Leather and Vinyl Cleaner conditions and cleans, keeping your table looking like new. 4 - 22oz spray bottles/case.
-
H7144 Disinfectant Spray
62.00 +
Protex® is a one-step cleaner/disinfectant, effective against a broad spectrum of pathogens, including MRSA, HIV, Staph and COVID-19.
the checked boxes will be added to your computer on the left side of the screen. You can print your estimate or send it to us by email to make your request faster.
* Prices shown are international shipping, import duties and customs duties included
*Prices are excluding VAT 20% effective in addition.
*The simulated price shown does not include delivery to your office.
*The indicated prices are subject to the fluctuation of the Dollar and the Euro, you must ask a confirmation of estimate and it must be sent to you.
*Order taking is subject to the terms and conditions of sale
* The additional costs linked to import costs and / or the additional costs linked to air transport will be directly attributable to the price of the goods.
